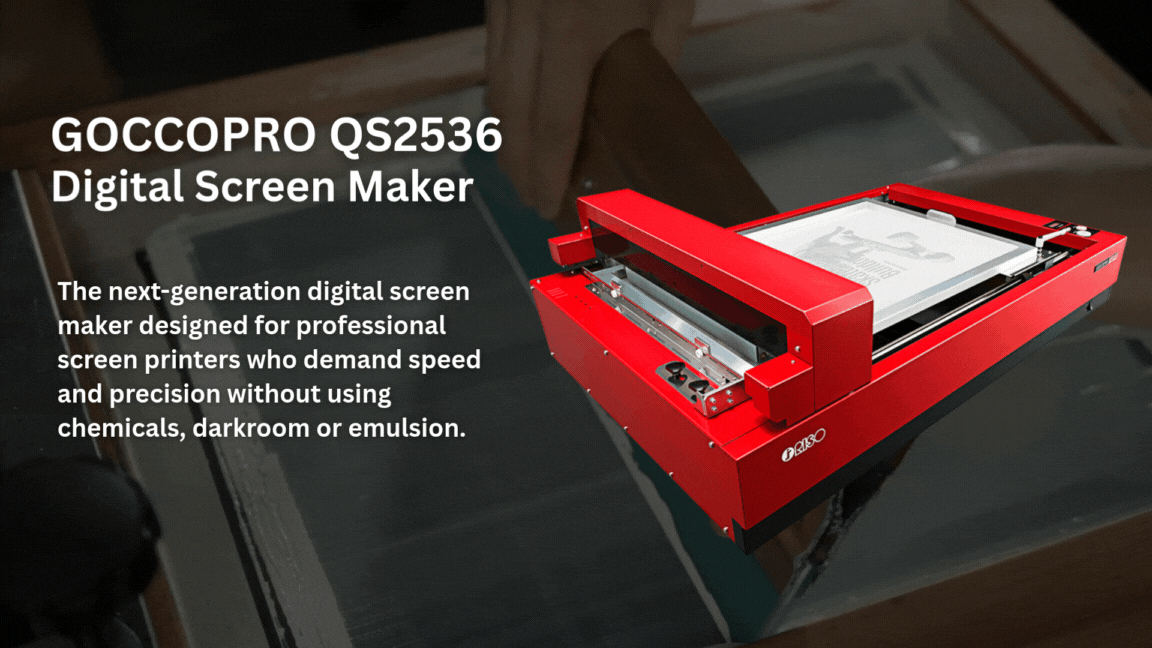

The GOCCOPRO QS2536 is a High-resolution, Digital Screen Maker

The GOCCOPRO QS2536 is a high-resolution digital screen maker for large-size printing. This is an environmentally friendly, completely dry digital thermal screen making system, using no water or chemicals and requires no exposure or drying, and enables speedy screen creation. No emulsion is used, eliminating washout steps, and there is no waste water.

The GOCCOPRO QS2536 handles a frame size up to 25” x 36”. It uses a long high-resolution thermal head of 1,200 dpi for a stable precision screen making process. This is the best screen maker for the printing industry due to its extra-large screen size, multi-color printing and high-precision screen making. Plus, the compact size will fit on a table.

Digital Screen Maker Frame Types and Sizes:
Aluminum Frame: (19” x 23.75”) with and without frame adhesive
Quick Self Tension Screw Frames: (21”x 23”), (22” x 31”), (25” x 36”)
Screen Door Frame: ​23” x 30”
Newman Roller Frame: 22” x 28”

Mesh Types and Sizes:
70 Mesh: (44.5” x 10’)
1/2 Roll 70 Mesh: (22” x 10’)
120 Mesh: (44.5” x 54.7 yards)
1/2 Roll 120 Mesh: (22” x 18’)
200 Mesh: (44.5” x 18’)
1/2 Roll 200 Mesh: (22” x 18’)

AttributeDescription

Image area

size (width x length)

Min.  0.39” × 0.39”
Max. 17.99” x 29.88” (frame thickness of .79”)
         17.91” x 28.90” (frame thickness of 1.77”)

Screen making time

Approx. 200 seconds

Resolution

600 dpi x 1200 dpi

(perforation density: 1200 dpi)

Memory capacity

128MB

Supported OS

Microsoft Windows® 10(32-bit/64-bit), Windows® 8.1(32-bit/64-bit),

Windows® 7(32-bit/64-bit)
OS X10.9 (64-bit)/10.10(64-bit)/10.11

(64-bit), macOS 10.12(64-bit)

Network interface

USB2.0

Power source

AC100-240V, 50-60Hz, 3.6-1.4A

Power consumption

Max. 300W

Dimensions
(width x depth x height)

47.83” x 31.50” x 16.14”

Weight

Approx. 154 lb

Payments as low as $545.00 per month.

Xpresscreen also offers Frame Stretchers

Newman Roller Stretch Frame
Newman Roller Stretch Frame Package: stretching table, twelve
(18” x 20”) roller frames, tool kit tension meter, alignment clips.

Workhorse Pneumatic Frame Stretcher
Nine sizes of complete Accu-Stretch systems, five sizes of
Accu-Stretch upgrades.
