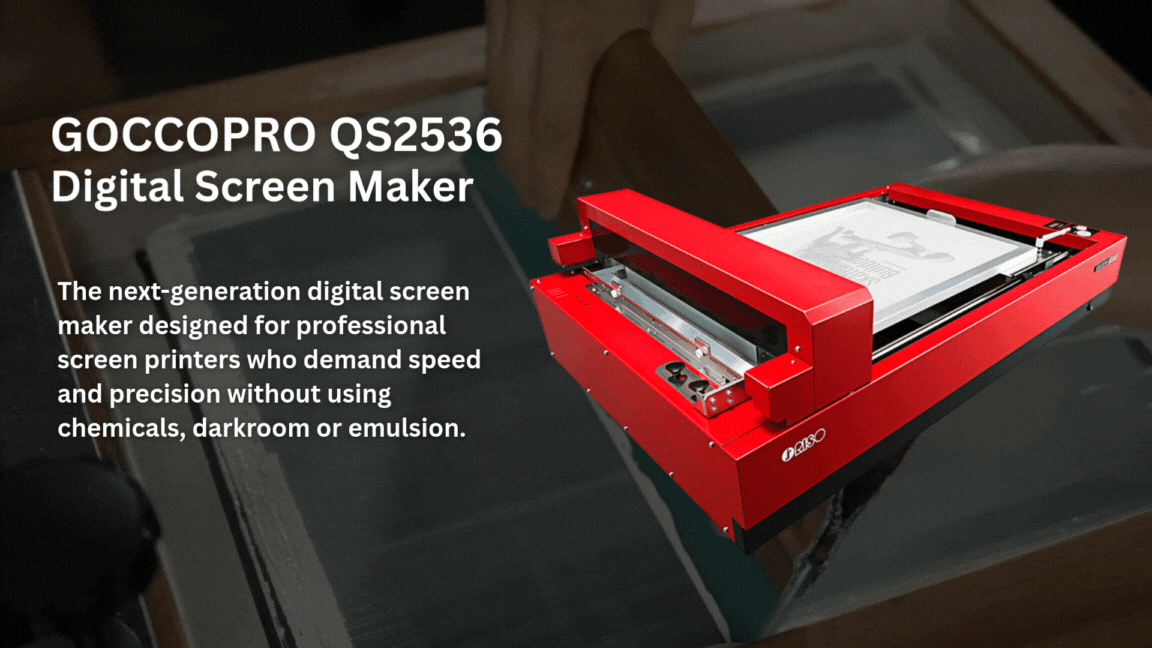

Why the Goccopro QS2536?
No darkroom, no chemicals, no hassle—just crisp, high-resolution screens in 3 minutes. The QS2536 has a 3-point registration system and a resolution of 1200 DPI, making it perfect for multi-color tight registration artwork. Save time, save space, enjoy fast cleanup, and deliver stunning detail—all while reducing water and chemical waste.
- Eco-Friendly:Unlike traditional screen printing, GOCCOPRO uses a thermal process that eliminates the need for emulsions, darkroom, or washout booth.
- High Resolution and Detail: The QS2536 can burn images at 1200 dpi, enabling the reproduction of fine gradations, halftone dots, and other details typically found in photographs.
- Ease of Use: The QS2536 is easy to operate, requiring minimal training and no special skills. You can simply connect it to your computer and send the image data.
- Compact: can fit on a table
- Precise Registration: The pre-stretched screen master on the frame ensures accurate alignment when printing multiple screens, making it suitable for multi-color printing.
- Diverse: It can be used for a variety of applications, including printing on fabric, plastic, glass, metal, cardboard and other materials.
Screen making method | High-speed digital screen making | |
Maximum Frame Size | 635mm x 914mm (25.00″ x 36.00″) | |
Maximum Image Area | 457mm x 759mm (17.99″ x 29.88″) (with a frame thickness of 20 mm(0.79″) | |
Screen Making Time | Approx. 200 sec (A2 (420 mm x 594 mm (16.54″ x 23.39″)) image area size) | |
Resolution |
| |
Main Unit Storage | 128MB | |
Supported OS | Microsoft Windows® 8(32-bit/64-bit), Windows® 7(32-bit/64-bit), Windows Vista®(32-bit/64-bit), Windows® XP(32-bit), Mac OS X10.4/10.5/10.6/10.7/10.8 | |
Interface | USB2.0 | |
Power Source | AC100-240V/2.5A, 50-60Hz | |
Power Consumption | Approximately 300W | |
Operating Environment | Temperature:15°C-30°C / 59F-86F | |
Dimensions | 1,215 mm x 800 mm x 410 mm (47.83″ x 31.50″ x 16.14″) | |
Weight | Approx. 70 kg (154 lb.) |
Digital Screen Maker Frame Types and Sizes:
Aluminum Frame: (19” x 23.75”) with and without frame adhesive
Quick Self Tension Screw Frames: (21”x 23”), (22” x 31”), (25” x 36”)
Newman Roller Frame: 22” x 28”
Mesh Types and Sizes:
70 Mesh: (44.5” x 10’)
1/2 Roll 70 Mesh: (22” x 10’)
120 Mesh: (44.5” x 54.7 yards)
1/2 Roll 120 Mesh: (22” x 18’)
200 Mesh: (44.5” x 18’)
1/2 Roll 200 Mesh: (22” x 18’)
